Convolutional Neural Network

Introduction

FROM MLP TO CNN: THE SHARED FOUNDATION

Convolutional Neural Networks (CNNs) are built upon the same fundamental principles as Multi-Layer Perceptrons (MLPs).

Both architectures consist of neurons with learnable weights and biases, where each neuron processes its input through a dot product followed by a non-linear activation function.

In both cases, the network’s parameters are organized into layers, and the entire model represents a single differentiable function — enabling training through backpropagation.

Thus, CNNs can be seen as a structured extension of MLPs, designed to exploit specific properties of spatial data such as images.

WHAT IF THE INPUT ARE IMAGES

When dealing with images, the data are naturally organized in a 2D grid structure, which can lead to several challenges:

• Parameter Explosion: if we simply unroll an image into a 1D vector (as an MLP requires), the dimensionality becomes extremely large.

However, image data contain strong local correlations — nearby pixels tend to have similar values. This redundancy can be exploited to reduce the number of parameters without losing important information.

• Loss of Spatial Information: Flattening an image into a 1D vector in an MLP destroys the spatial relationships between pixels. The model “forgets” that pixels are arranged in a structured grid, which is crucial for understanding images.

• Inability to Learn Hierarchies: These networks struggle to recognize that features are built hierarchically (e.g., pixels form edges, edges combine into shapes, and shapes form objects).

  In deep learning architectures, we still want to preserve this hierarchical composition of features: the first layers extract low-level patterns, and subsequent layers gradually learn more abstract representations closer to the target labels.

THE SOLUTION: A NEW APPROACH

Convolutional Neural Networks (CNNs) are specifically designed for image inputs. Their main purpose is to automatically and adaptively learn spatial hierarchies of features.

They achieve this by detecting simple patterns in the early layers and progressively building upon them to recognize more complex structures in deeper layers.

Inspiration from Biology: The Visual Cortex

The design of CNNs is inspired by how the visual cortex in the human brain processes visual information. In the biological vision system, processing occurs in stages:

• Neurons in early stages detect simple features like edges, lines, and colors.
• Later stages combine these simple patterns to recognize more complex elements like textures, shapes, and eventually entire objects.

Crucially, each neuron in the visual cortex responds only to stimuli within a small, localized region of the visual field — a concept mirrored by the local receptive fields in CNNs.

Another important aspect of human vision is motion: our brains can recognize and track objects based on how they move through space, further refining perception and recognition.

BUILDING BLOCKS

CNNs derive their efficiency and power from a combination of specialized building blocks:

• Convolutional Layers
• Activation Functions
• Pooling Layers

flowchart LR
    In([Input Volume]) --> Conv[Convolutional Layer]
    Conv --> Act[Activation Function]
    Act --> Pool[Pooling Layer]
    Pool --> Out([Output/Next Layer])

    subgraph "Typical CNN Block"
    Conv
    Act
    Pool
    end

These foundational blocks will be detailed in the subsequent sections.

Architecture

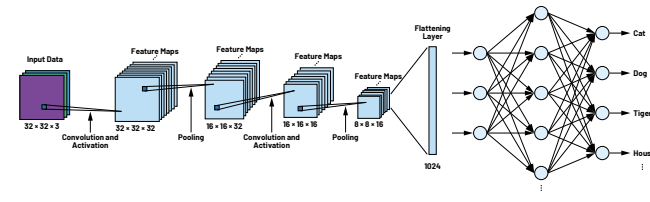

A typical Convolutional Neural Network (CNN) is composed of a sequence of layers stacked one on top of the other.

Each layer transforms an input 3D volume into an output 3D volume, using a differentiable function. Some layers have learnable parameters (e.g., convolutional layers), while others do not (e.g., pooling layers).

Each convolutional layer produces multiple 2D outputs, called feature maps or activation maps, which highlight where specific patterns (such as edges or textures) are detected in the input.

Then, pooling layers reduce the spatial dimensions (width and height) of these maps using non-learnable operations (e.g., max or average pooling), making the representation more compact and translation-invariant while preserving the most important information.

As the network goes deeper, the feature maps become smaller but richer in depth, capturing increasingly abstract features.

Finally, the 3D feature volume is flattened into a vector and passed to one or more fully connected (MLP) layers, which perform the final classification.

Convolutional Layers

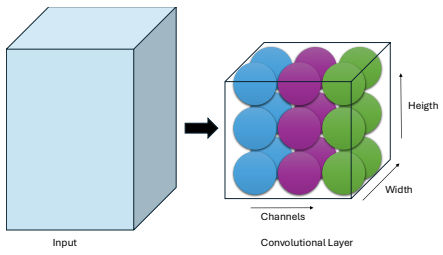

The Convolutional Layer is the fundamental building block of Convolutional Neural Networks. Unlike neurons in a fully connected layer, neurons in a convolutional layer are arranged in three dimensions:

• width
• height
• depth (Channels)

LOCAL CONNECTIVITY

At its core, each neuron in a Convolutional Neural Network (CNN) still performs a weighted sum of its inputs plus a bias, just like in an MLP:

However, unlike neurons in an MLP — which are fully connected to all inputs (meaning each neuron “sees” the entire image) — neurons in a convolutional layer are connected only to a small, localized region of the input volume, known as their receptive fields.

This local connectivity allows the network to learn simple patterns such as edges or textures in early layers and progressively more complex features in deeper ones.

PARAMETER SHARING AND FEATURE MAP

To efficiently detect the same feature across different parts of an image, CNNs use parameter sharing — meaning that the same set of weights and bias, called a filter or kernel, is applied across all spatial positions of the input. This ensures that:

1. The same feature can be detected anywhere in the image.
2. The number of learnable parameters stays small.

As this filter slides over the input (the convolution operation), it computes weighted sums of the pixels plus the bias at each location, producing a 2D feature map or activation map that shows where and how strongly the pattern represented by that filter appears in the image.

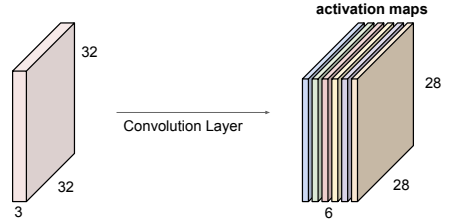

A separate feature map is generated for each filter, and the final output volume of the layer is obtained by stacking all the feature maps together.

DEEPER LAYERS AND RECEPTIVE FIELD EXPANSION

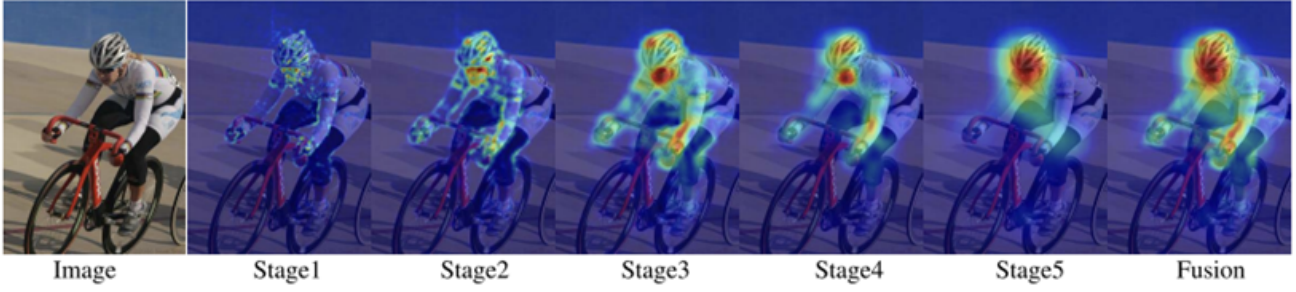

When another convolution is applied on top of a feature map, each neuron now “sees” a larger portion of the original image, since each input value already summarizes a region of pixels.

As the network goes deeper, the receptive field grows, meaning a single neuron can eventually “see” the entire image.

This explains why early layers capture local features (edges, corners), while deeper layers learn global and abstract patterns.

WHAT IS CONVOLUTION?

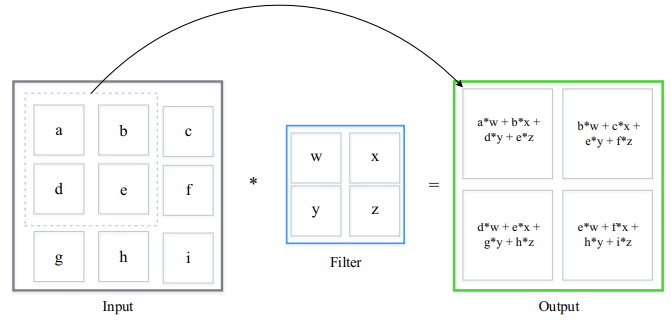

Note that this diagram simplifies the process for a single channel. In practice, a filter’s depth must match the input volume’s depth (e.g., a $3 \times 3 \times 3$ filter for a $32 \times 32 \times 3$ RGB image). The convolution involves element-wise multiplications across all channels, and the results are summed together, along with a single bias term, to produce one pixel in the output feature map.

HYPERPARAMETERS

Each convolutional layer is defined by the following hyperparameters:

• Number of Filters $C_{out}$: Determines the depth of the output volume — that is, how many feature maps the layer produces.
• Kernel Size ($K \times K$): Specifies the spatial dimensions of each filter. Kernels are usually square and always extend across the entire depth $C_{in}$ of the input volume.
• Stride $S$: The number of pixels the convolutional filter shifts across the input at each step.

Additionally, the presence and amount of Spatial Padding $P$ applied to the input volume can be considered another hyperparameter. Padding is often used to preserve spatial dimensions or to ensure an integer output size.

NUMBER OF LEARNABLE PARAMETERS

Given an input volume of size $H \times W \times C_{in}$, the number of learnable parameters for a convolutional layer with $C_{out}$ filters and a kernel size of $K \times K$ is:

Explanation

• There are $C_{out}$ distinct filters (kernels) in the layer.
• Each filter has spatial dimensions $K \times K$ and extends through the full depth of the input volume ($C_{in}$). So, each filter has $K \times K \times C_{in}$ weights.
• Additionally, each of the $C_{out}$ filters has its own additive learnable bias term.

Activation Functions

The output of a convolutional layer is an activation map, obtained through a linear operation. However, the composition multiple linear function still produces only a linear function — meaning that, without introducing non-linearities, a deep neural network, no matter how many layers it has, would behave like a single-layer linear model (e.g., logistic regression), and thus would be unable to capture complex patterns in data.

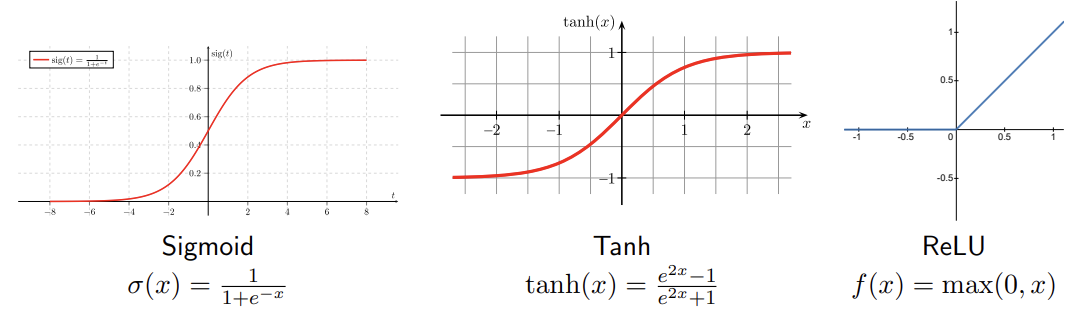

To overcome this, CNNs introduce nonlinear activation functions after each convolutional layer. The most common ones include:

Each activation function is applied element-wise to the activation map, making the model capable of learning complex, nonlinear patterns. Because these activation maps can themselves be interpreted as images, they can also be visualized or overlaid on the original input to show which regions the network focuses on. By upsampling maps from different layers, we can see how the CNN’s attention evolves across stages.

WHY RELU IS PREFERRED

The ReLU activation function has gained significant popularity for several reasons:

• Accelerated Convergence: ReLU was empirically found to greatly accelerate the convergence of Stochastic Gradient Descent compared to Sigmoid and Tanh functions.
• Computational Efficiency: ReLU can be implemented by a simple thresholding operation $f(x) = \max(0, x)$, whereas Sigmoid and Tanh involve more complex exponential calculations.

Pooling Layers

Pooling layers spatially downsample the input volume, reducing its width and height while preserving the most important information. Pooling is typically applied independently to each depth slice (channel) of the input.

The main hyperparameters of pooling layers are:

• Pool Size ($K$): The spatial dimensions of the pooling window (e.g., $2 \times 2$).

• Stride ($S$): The number of pixels the pooling window moves across the input at each step.

  When $S = K$, the pooling windows are non-overlapping.

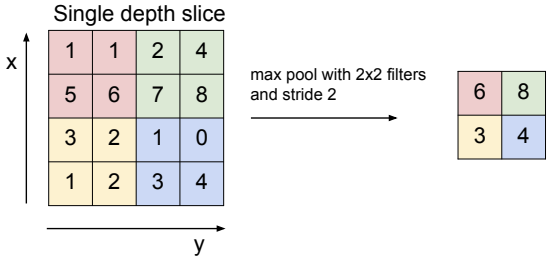

The pooling window slides across the image, and at each position, a predefined operation, such as taking the maximum or the average of the covered values, is applied.

POOLING FUNCTIONS

The type of pooling function is an additional hyperparameter. While several aggregation methods are possible, the most commonly used in practice are:

• Max Pooling: Returns the maximum value within the pooling window. This is by far the most common choice because it effectively captures the strongest activations.
• Average Pooling: Returns the average value within the pooling window, providing a smoother representation but often less discriminative than max pooling.

THE PROS

Pooling layers are widely used because they provide several key advantages:

• Gain robustness to the exact location of the features

  Pooling helps the network become more robust to small spatial variations in feature positions. By taking the maximum value within a window (max pooling), the model captures the strongest activation—i.e., the point where the kernel best matches the feature—while ignoring small shifts or distortions.

• Reduce computational (memory) cost

  Because pooling downsamples the activation maps, so subsequent layers operate on smaller inputs.

• Help preventing overfitting

  Since the max operation can select different pixels as the strongest activations across samples, the network doesn’t rely on specific spatial positions. This introduces a form of randomness or variability—similar to changing the input topology—which makes it harder for the model to memorize exact locations and instead encourages it to learn more general, position-independent features.

• Increase the receptive field of the following layers

  Each pooling layer reduces spatial resolution, meaning neurons in deeper layers correspond to larger portions of the input image. This enables the network to capture higher-level and more abstract features, such as object parts or textures, instead of just edges or corners.

THE CONS

While beneficial for some tasks, the aggressive downsampling of pooling layers presents drawbacks:

• Loss of Spatial Resolution: Pooling reduces the spatial dimensions of the feature maps, which can be problematic for tasks requiring precise localization, such as semantic segmentation, where each pixel must be assigned a specific class label.

  In such cases, reducing the image size destroys the one-to-one correspondence between input and output pixels. Therefore, modern architectures often use alternative downsampling methods or add upsampling layers later in the network to restore the original resolution when pixel-level predictions are needed.



Batch Normalization

Training deep neural networks is challenging because they consist of many layers, where the input received by each layer depends on the parameters of all the layers that come before it.

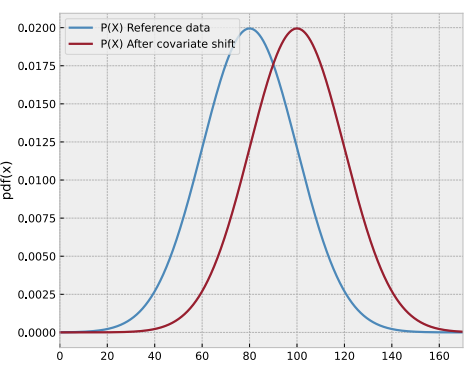

As the network learns, the parameters in these earlier layers continuously change. Even small changes can be amplified as they propagate through the network, which alters the distribution of each layer’s inputs. This phenomenon is known as Internal Covariate Shift.

This forces the network to constantly adapt to shifting input distributions, making the training process slower and more unstable.

THE SOLUTION: BATCH NORMALIZATION

Batch Normalization is a technique designed to stabilize and speed up the training of deep neural networks. It works by standardizing the inputs to each layer across every mini-batch, reducing internal covariate shift and helping the network learn with greater stability.

DURING TRAINING

For a mini-batch $B$ containing $m$ activations $x$, the process involves four key steps:

1. Calculate mini-batch mean:

   $$\mu_B = \frac{1}{m} \sum_{i=1}^{m} x_i$$

   This represents the average activation across the batch.

2. Calculate mini-batch variance:

   $$\sigma^2_B = \frac{1}{m} \sum_{i=1}^{m} (x_i - \mu_B)^2$$

   This measures how much the activations deviate from the mean.

3. Normalize:

   $$\hat{x}_i = \frac{x_i - \mu_B}{\sqrt{\sigma^2_B + \epsilon}}$$

   Each activation is standardized to have approximately zero mean and variance (standard deviation) one. The small constant $\epsilon$ prevents division by zero.

4. Scale and shift:

   $$y_i = \gamma \hat{x}_i + \beta$$

   Here, $\gamma$ and $\beta$ are learnable parameters, without them, all normalized outputs would be constrained to have mean 0 and variance 1, which might limit the network’s representational capacity.

   They allow the network to learn the optimal scale $\gamma$ and shift $\beta$ for the normalized activations. In essence, the network can undo the normalization if it’s not beneficial.

DURING INFERENCE

During inference typically we process one input at a time rather than a mini-batch. In this case we need a deterministic way to normalize, so we use population statistics — the mean and variance estimated over the entire training process.

These values are obtained by using a moving average of the mini-batch means and variances observed during training.

The normalization equation becomes:

BENEFITS

• Faster Training: Allows for higher learning rates, which speeds up convergence.
• Reduces Internal Covariate Shift: Stabilizes the distribution of layer inputs.
• Regularization Effect: The noise from mini-batch statistics has a slight regularizing effect, sometimes reducing the need for dropout.
• Less Sensitive to Initialization: Makes the network less dependent on the initial weights.

Key Takeaways
